RS series

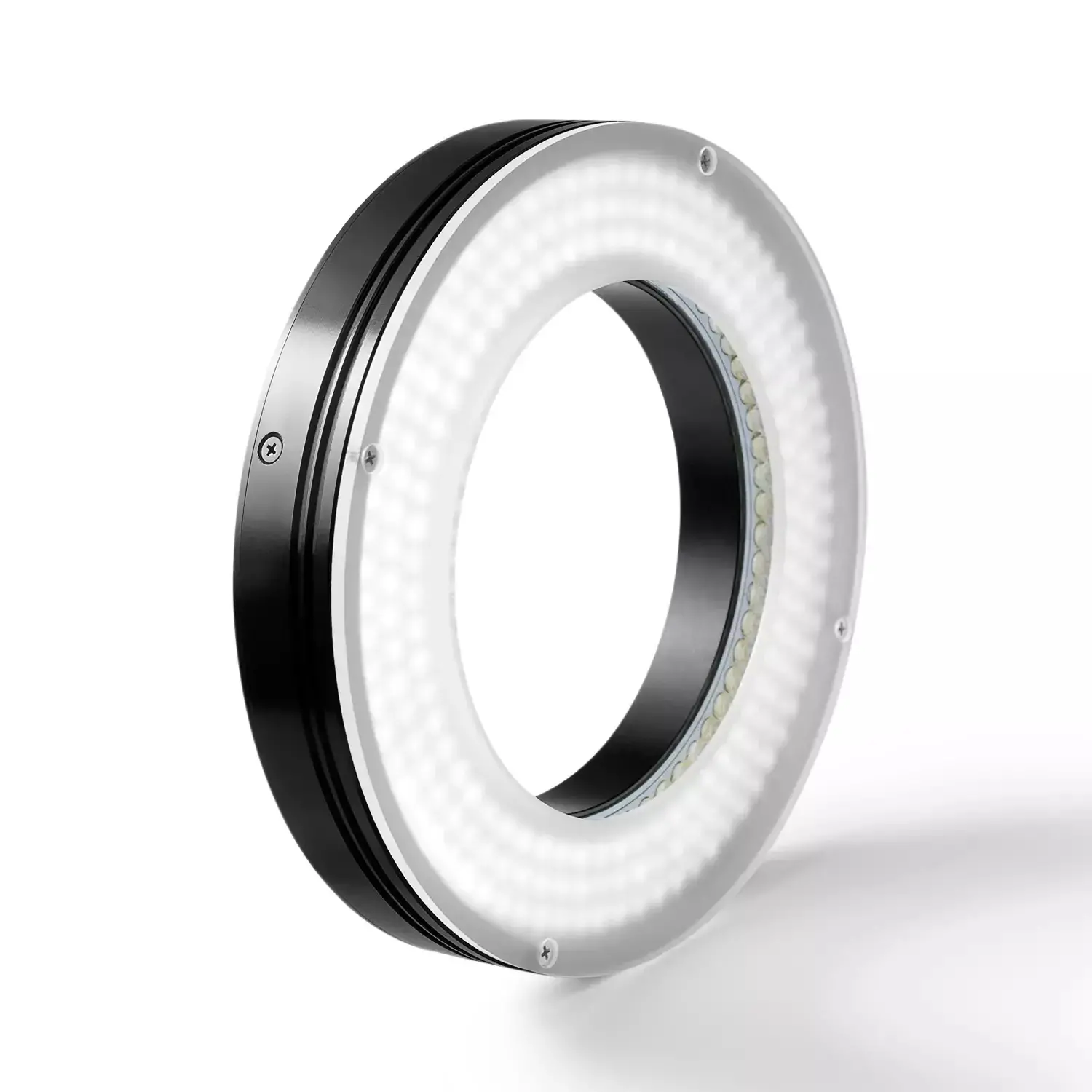

Ring light source, RS series



Product feature

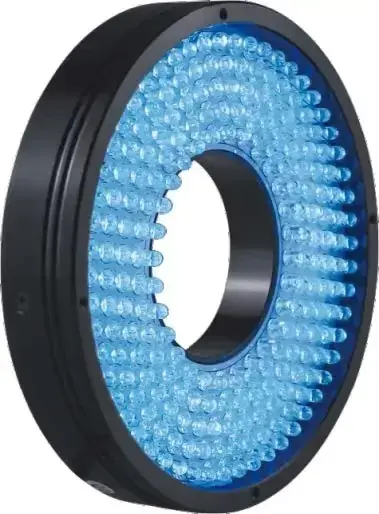

◆ High density LED array, high brightness.

◆ Compact structure design, save installation space.

◆ Optional diffuse plate to make light diffusion evenly.

◆ Unique heat dissipation structure, improve the stability of light source.



Application

◆ Various character recognition

◆ Various appearance inspection

◆ Various damage and defect inspection

◆ QR codes, one-dimension code bar code reading

◆ Part inspection on substrates

◆ Mint-mark on the metal surface

◆ Various edge extraction

◆ The inspection of the medicine mix foreign matter

◆ Defect inspection of glass end face

◆ O - ring appearance inspection

◆ Various edge inspection

◆ Foreign matter inspection on wafers

◆ Inspection the binding of shrink film

◆ Rubber character inspection

◆ Various color recognition inspection

◆ Screen printing inspection

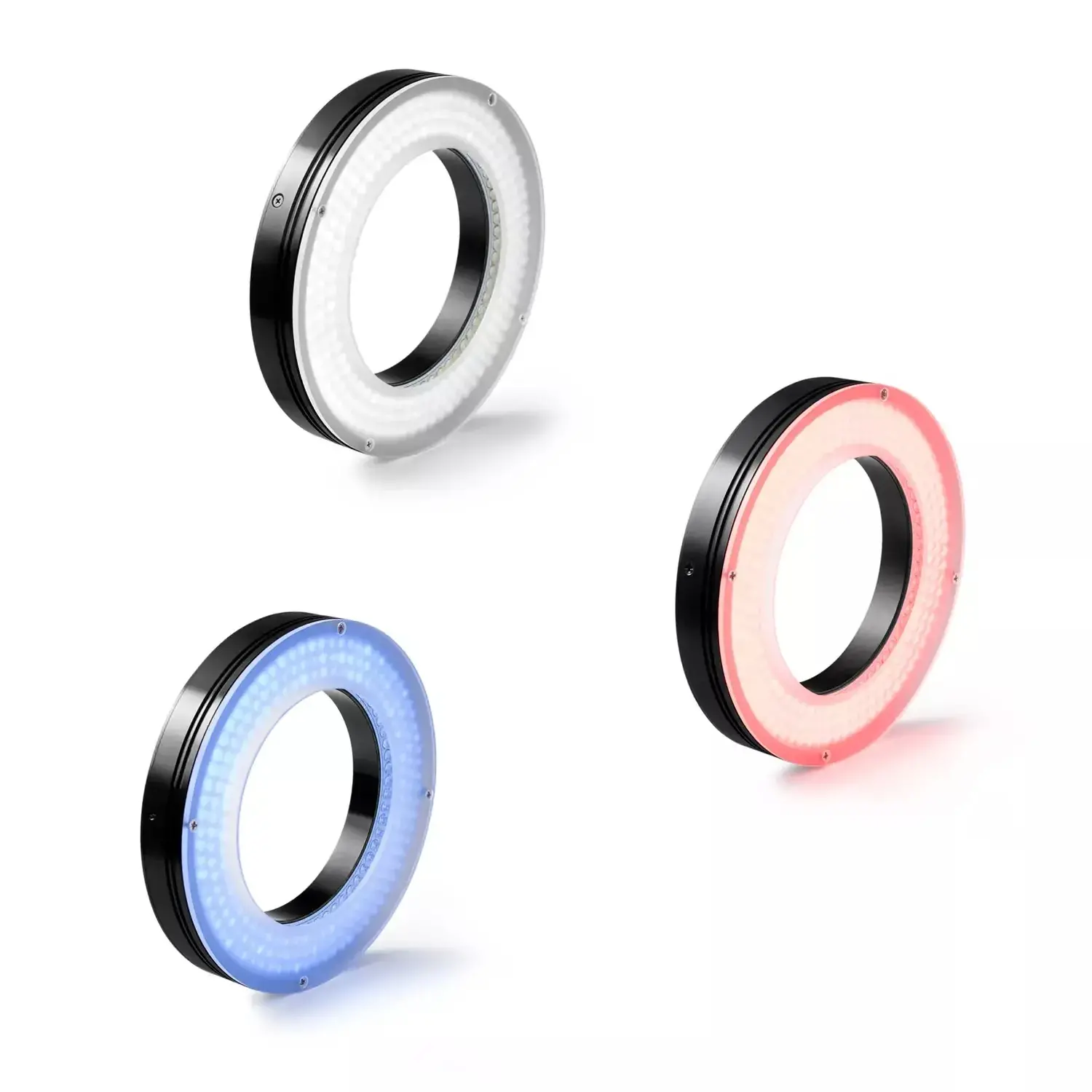

Wave length/color temp Red 620-630nm IR 850-940nm
Blue 465-475nm UV 365-405nm
White 6000-10000k Green 520-530nm
Storage environment Temp -20-60℃ Humidity 20- 85%RH(Non-condensation)
Using environment   0-40℃
Option accessories Extension cable, Diffuse plate
Controller CST-DPS series、CST-APS series、CST-SPS serise（The selected controller should match the power of the light source）
Service life When the environment at 25℃, the red color works continuously for 60000 hours with 50% illumination,the decrement at 50%
When the environment at 25℃, the white color works continuously for 30000 hours with 50% illumination,the decrement at 50%
Quality assurance  CST products shipped out in 1 year, the fault not caused by personal reason, will provide free maintenance

Specifications

Item Model Color Power(W) Lamp beads rows Overall size(mm) Recommended controller
R G/B/W OD ID H
1 CSTR-RS3475-R/G/B/W ●●●● 1.2 2 2 34 10 19 CST-DPS、CST-APS、CST-SPS
2 CSTR-RS4090-R/G/B/W ●●●● 0.8 1.2 1 40 24 23 CST-DPS、CST-APS、CST-SPS
3 CSTR-RS5015-R/G/B/W ●●●● 1.6 2.4 2 50 14 18 CST-DPS、CST-APS、CST-SPS
4 CSTR-RS5045-R/G/B/W ●●●● 3.2 4.8 3 50 20 19 CST-DPS、CST-APS、CST-SPS
5 CSTR-RS5390-R/G/B/W ●●●● 2 3.2 2 53 25 17 CST-DPS、CST-APS、CST-SPS
6 CSTR-RS6000-R/G/B/W ●●●● 1.2 2 1 60 30 9 CST-DPS、CST-APS、CST-SPS
7 CSTR-RS6030-R/G/B/W ●●●● 2.4 3.6 2 60 22 18 CST-DPS、CST-APS、CST-SPS
8 CSTR-RS6630-R/G/B/W ●●●● 2.4 3.6 2 66 32 18 CST-DPS、CST-APS、CST-SPS
9 CSTR-RS6660-R/G/B/W ●●●● 4 6.7 3 66 35 20 CST-DPS、CST-APS、CST-SPS
10 CSTR-RS7390-R/G/B/W ●●●● 4.8 7.1 3 73 36 17.5 CST-DPS、CST-APS、CST-SPS
11 CSTR-RS7430-R/G/B/W ●●●● 3.2 4.8 2 74 40 20 CST-DPS、CST-APS、CST-SPS
12 CSTR-RS7460-R/G/B/W ●●●● 4.8 7.1 3 71 35 20 CST-DPS、CST-APS、CST-SPS
13

CSTR-RS9030-R/G/B/W

 ●●●● 6.3 9.5 3 90 50 21 CST-DPS、CST-APS、CST-SPS
14 CSTR-RS9045-R/G/B/W ●●●● 7.1 12 4 90 46 21 CST-DPS、CST-APS、CST-SPS
15 CSTR-RS9080-R/G/B/W ●●●● 6.3 9.5 3 90 50 18 CST-DPS、CST-APS、CST-SPS
16 CSTR-RS9600-R/G/B/W ●●●● 2.4 3.6 1 90 60 10 CST-DPS、CST-APS、CST-SPS
17 CSTR-RS10090-R/G/B/W ●●●● 8.3 14 5 100 40 18 CST-DPS、CST-APS、CST-SPS
18 CSTR-RS12030-R/G/B/W ●●●● 8.3 14 3 120 80 23 CST-DPS、CST-APS、CST-SPS
19 CSTR-RS12080-R/G/B/W ●●●● 8.3 14 3 120 65 22 CST-DPS、CST-APS、CST-SPS
20
CSTR-RS13220-R/G/B/W		 ●●●● 9.5 15 3 132 96 22 CST-DPS、CST-APS、CST-SPS
21
CSTR-RS14600-R/G/B/W		 ●●●● 3.2 4.8 1 146 104 11 CST-DPS、CST-APS、CST-SPS
22
CSTR-RS17020-R/G/B/W		 ●●●● 1.3 19 3 170 134 22 CST-DPS、CST-APS、CST-SPS
23
CSTR-RS17200-R/G/B/W		 ●●●● 4.8 6.3 1 172 130 9 CST-DPS、CST-APS、CST-SPS
24
CSTR-RS17525-R/G/B/W		 ●●●● 6.3 9.1 3 175 136 22 CST-DPS、CST-APS、CST-SPS
25
CSTR-RS18030-R/G/B/W		 ●●●● 24 26 5 180 132 27 CST-DPS、CST-APS、CST-SPS
26
CSTR-RS20820-R/G/B/W		 ●●●● 1.5 19 3 208 172 23 CST-DPS、CST-APS、CST-SPS
27
CSTR-RS21300-R/G/B/W		 ●●●● 4.8 7.9 1 213 175 11 CST-DPS、CST-APS、CST-SPS
28
CSTR-RS26220-R/G/B/W		 ●●●● 14 19 2 262 226 16.5 CST-DPS、CST-APS、CST-SPS
29 CSTR-RS50BC ●   4.8 3 50 20 19 CST-DPS、CST-APS、CST-SPS
30 CSTR-RS50WC ●   4.8 3 50 20 19 CST-DPS、CST-APS、CST-SPS
31 CSTR-RS50U365 UV365   4.8 3 50 20 19 CST-DPS、CST-APS、CST-SPS
32 CSTR-RS50U395 UV395   4.8 3 50 20 19 CST-DPS、CST-APS、CST-SPS
