COSC Series

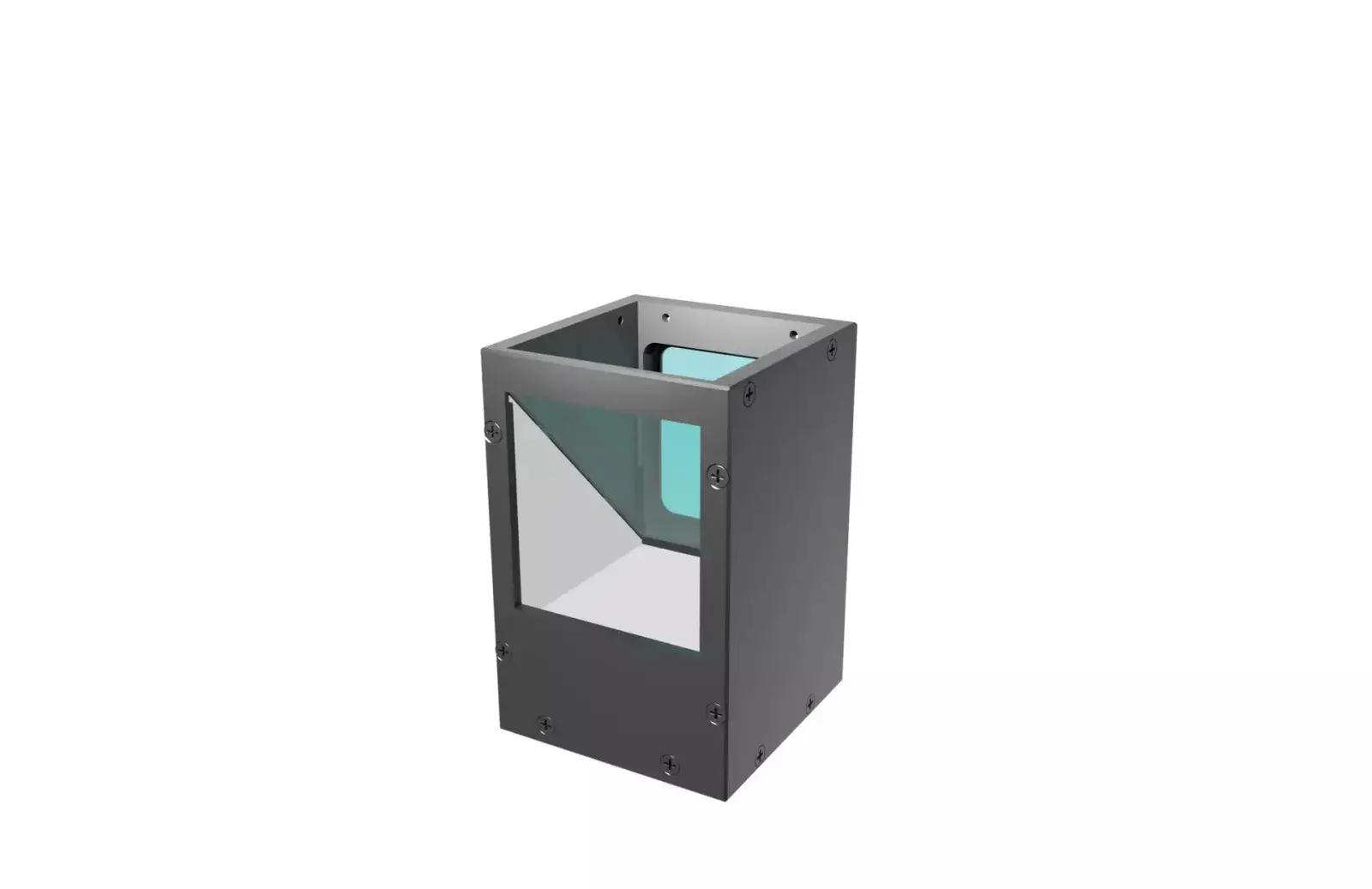

Coaxial lights, COCS series



Product features

◆ High density LED array, high brightness，clearly imaging.

◆Unique heat dissipation structure, improve the stability of light source.

◆ Special coating， can eliminate the image ghosting effectively

◆ Can highlight the uneven surface of the object, overcome the interference caused by surface reflection.

◆ Change the install direction, to save the installation space.



Application

◆ Steel profile positioning

◆ QR codes reading

◆ Metal surface defect inspection

◆ Webcam appearance inspection

◆ Circuit board mark inspection

◆ Various dimensions measurement

 ◆ PCB copper leakage inspection

◆ LED lampholder positioning

◆ Internal character recognition of mobile phone shell

Specification

Item CST No.  Color Power(W) Luminous size(mm) Overall size(mm) Recommended controller
R G/B/W L W H
1
CSTR-COSC20-R/G/B/W		 ●●●● 0.9 1.8 20×20 41 28 25 CST-DPS、CST-APS、CST-SPS
2
CSTR-COSC24-R/G/B/W		 ●●●● 2.3 4.6 24×24 45 40 36 CST-DPS、CST-APS、CST-SPS
3
CSTR-COSC3225-R/G/B/W		 ●●●● 2.3 4.6 32×25 45 40 36 CST-DPS、CST-APS、CST-SPS
4
CSTR-COSC40-R/G/B/W		 ●●●● 2.7 5.4 40×40 135 50 48 CST-DPS、CST-APS、CST-SPS
5
CSTR-COSC70-12V		 ●●●● 7.2 11 70×70 100 80 50 CST-DPS、CST-APS、CST-SPS
6 CSTR-COSC40BC ●   5.4 40×40 135 50 48 CST-DPS、CST-APS、CST-SPS
7 CSTR-COSC40WC ●   5.4 40×40 135 50 48 CST-DPS、CST-APS、CST-SPS
8 CSTR-COSC40U365 UV365   5.4 40×40 135 50 48 CST-DPS、CST-APS、CST-SPS
9 CSTR-COSC40U395 UV395   5.4 40×40 135 50 48 CST-DPS、CST-APS、CST-SPS
